Instrument Cluster Porsche 356 – ODG1361629

Descripción

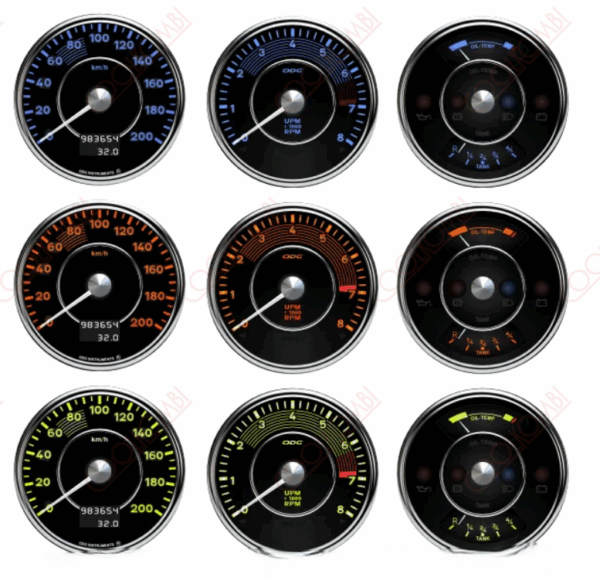

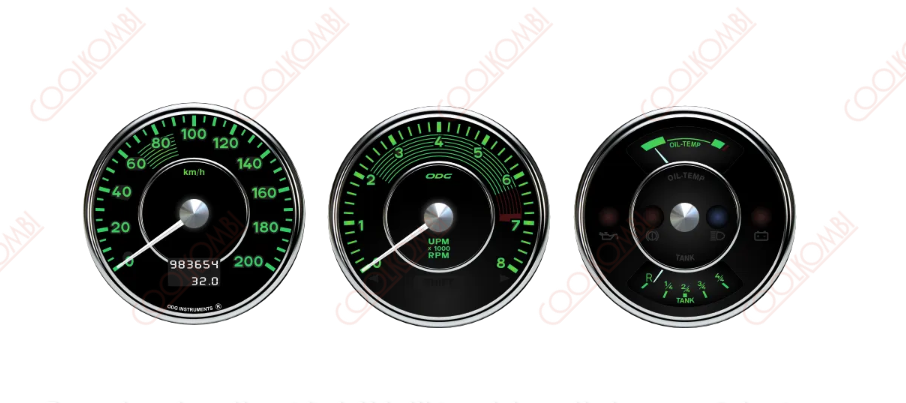

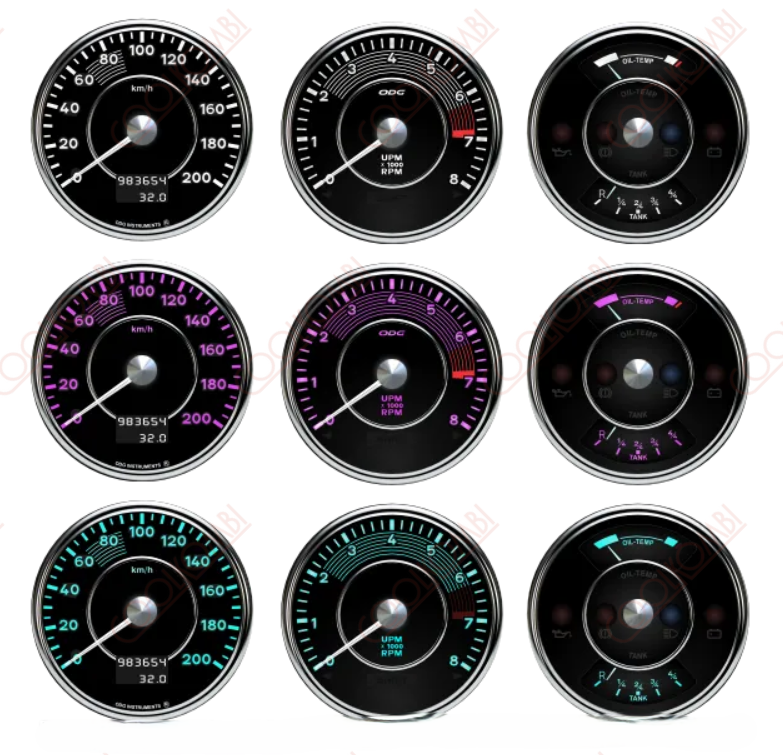

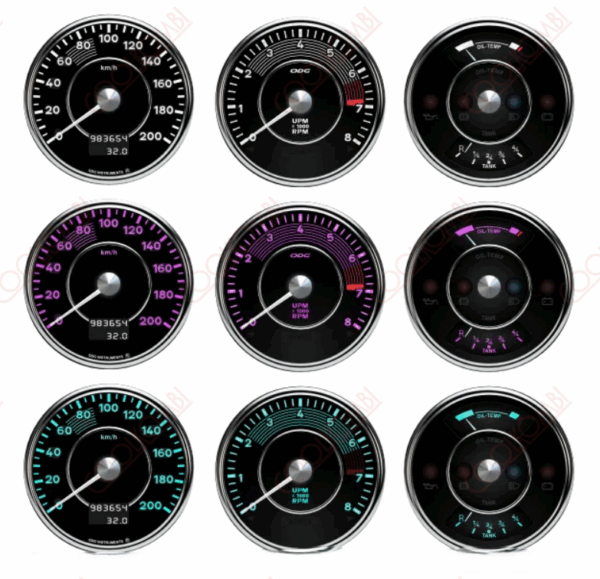

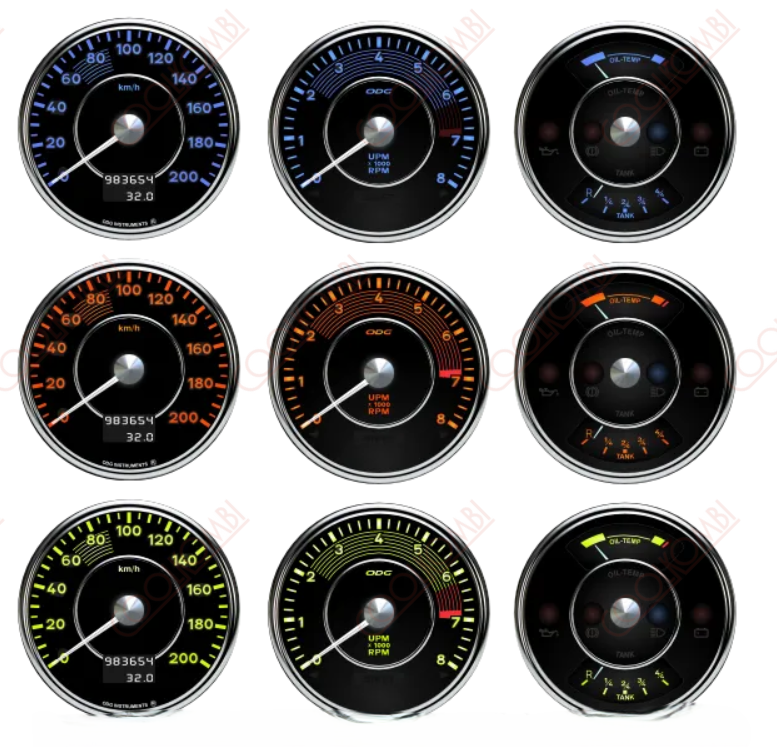

Instrument Cluster Porsche 356

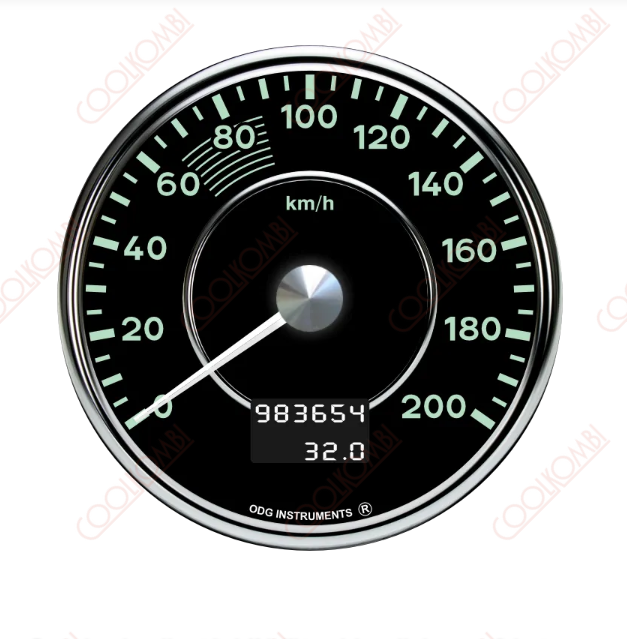

SPEEDOMETER
With a scale up to 200 km/h or 120 MPH, it is fully configurable and can work with any transmission ratio and tire outer diameter, simply by installing a speed sensor.
It accepts both inductive sensor signals with a minimum amplitude of 1 Vpp (peak-to-peak) and square wave signals.
It offers several calibration options, including a very simple 60 km/h calibration method.
The total odometer can be configured with an initial KM value, a useful feature to maintain the vehicle’s original mileage.
The trip odometer can be reset at any time using the keypad.
Once configured, the speed reading is highly accurate.

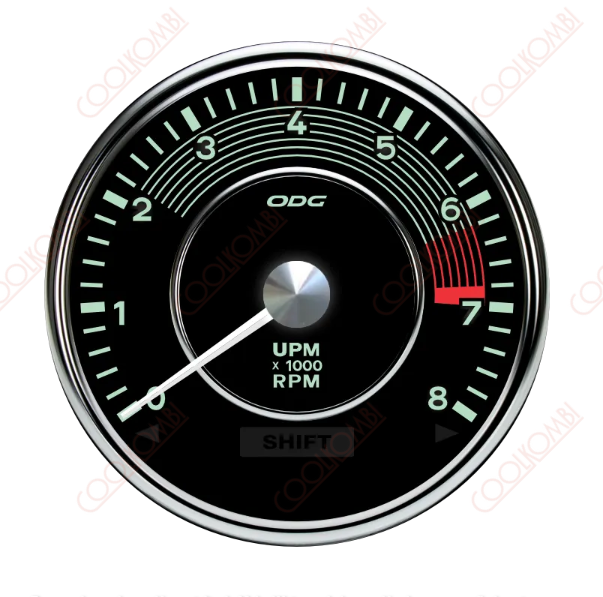

TACHOMETER
Integrated left and right turn signal indicators.
With an 8000 RPM scale, it works with Otto cycle engines (4, 6, and 8 cylinders) or diesel engines. Not recommended for contact point ignition systems.
For diesel engines, the RPM signal must be obtained from the alternator’s W terminal.

ENGINE TEMPERATURE GAUGE
Electronic, works with a modern temperature sensor (model MTE4054 / ODG 052.0.0.0.3), two-wire type, providing excellent performance.
The temperature sensor and its harness are included with the panel.

FUEL LEVEL GAUGE
Programmable for any float and tank combination. Programming is simplified and can be done in two ways: either by entering resistance values for empty, half, and full tank, or by filling the tank completely. In addition to manual programming, you can also choose from 4 pre-programmed float options.

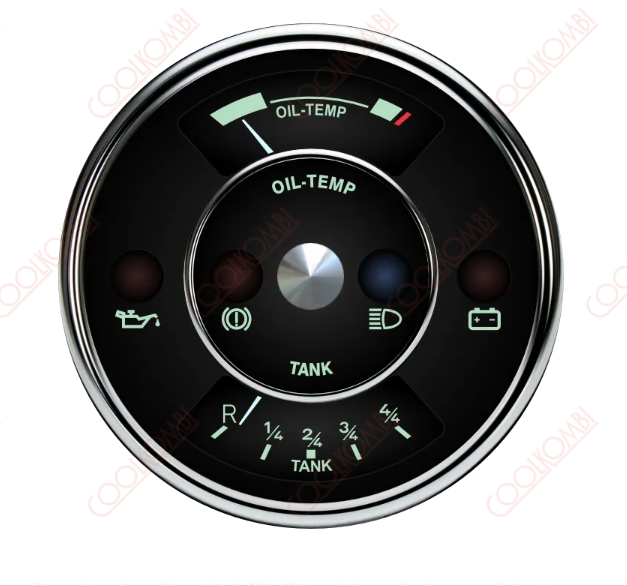

INDICATOR PANEL
Includes 6 indicators covering the most important vehicle alerts (alternator, oil pressure, brake, left turn signal, right turn signal, and high beam).

INSTALLATION:
The instrument can be securely mounted using the supplied mounting bracket.

Technical specifications:

• Operating voltage: 9 to 16 VDC

• Speed scale: 0 to 200 km/h or 120 mph

• RPM scale: 0 to 8,000 RPM

• Engine temperature scale: 70 to 150 °C

• Fuel level gauge with 4 pre-programmed floats and adjustable float option

• Programmable for any transmission ratio (requires sensor)

• Indicator panel with 6 indicators

• Easy parameter setup through the display and keypad provided

Included items:

• Speed sensor 5103 with M18 x 1.5 internal/external thread (1450000)

• Temperature sensor with M10 x 1.5 thread MTE4050 (0520003)

• Configuration and operation keypad

• Installation manual

• Warranty certificate

• Sticker

Requirements:

• For the speedometer: 2- or 3-wire speed sensor

• For the fuel level gauge: float/level sensor with maximum resistance of 1000 Ohms

12-month warranty
